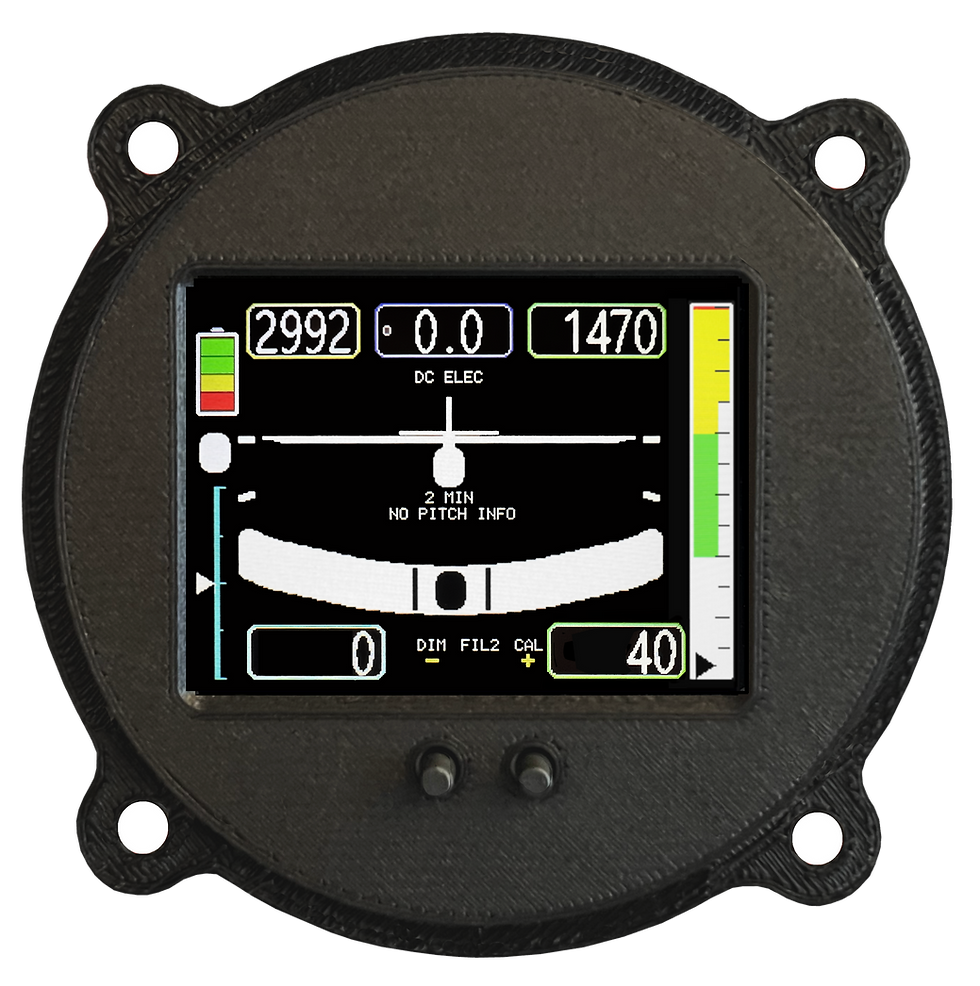

SafePanel Mini Glass Panel

ORDER AT AIRCRAFT SPRUCE

• Integrated Turn Coordinator & Ball

  • Same rock-solid digital engine as our popular Panel Turn Coordinator

• Altimeter

  • Barometric altitude with digital Kollsman setting (IN/HPA)

  • Clear digital altitude display with fast update and smart smoothing

  • Provides settable altitude information via a standard Kollsman window.

  • Testing has demonstrated that, when properly calibrated, the instrument can meet the applicable TSO altitude-accuracy criteria.

  • Altimeter works from 0 to 20,000 feet.

• Vertical Speed Indicator

  • Numeric VSI in FPM

  • Vertical bar/triangle rate presentation tuned for readability

• Panel-Mount Design

  • Fits standard 2 1/4" or 3⅛" instrument hole

  • Internal battery charges from ship's power allows unit to operate even if ship's power is lost

• Dimming & Visuals

  • Updated bevel/neon aesthetics

  • Smooth dimming and highly legible typography

• Experimental Focus

  • For use in experimental and light sport aircraft

  • Non-TSO’d; complements certified primary instruments in appropriate aircraft

SafePanel’s turn and bank presentation offers more information:

•            A re-engineered inclinometer and ball with smoother geometry and motion than RADIANT’s earlier turn coordinators.

•           Digital yaw readout, giving a precise numeric indication of rate of yaw change.

•            Yaw exceedance warnings, with clear annunciation when yaw exceeds approximately 5° and again around 20°, helping pilots catch tightening turns quickly.

Standard on SafePanel

• Digital altimeter

• Digital VSI

• Vertical VSI tape, giving at-a-glance trend information

• When configured for Relative Altitude, the vertical tape becomes a relative altitude indicator instead of airspeed. The tape and digital readout give an immediate picture of height above terrain, which is ideal for pattern work, training, and low-altitude operations.

• User-configurable thresholds make it easy to align the Relative Altitude (REL ALT) tape with typical pattern altitudes and flap-usage practices. REL ALT displays barometric altitude relative to a reference selected by the pilot. It is not terrain-aware and does not independently indicate height above ground level.

Optional ASI Tape

• Smooth ASI vertical tape plus a digital airspeed readout.

• Functional from 0 to 220 knots (250 mph).

• User-selectable knots/mph.

• All V-speeds user-configurable in setup, displayed directly on the ASI tape (Vso, Vs1, Vfe, Vno, Vne).

• With the ASI option, the vertical tape functions like a traditional “mini glass” airspeed indicator. The user can set it back to Relative Altitude mode via a setup screen.

Battery backup automatically charges when connected to ship’s power. Because it works when ship power is lost, SafePanel includes robust power and backup features:

• In the event of ship power loss, SafePanel raises a clear power loss flag and continues operating on internal battery, with 4+ hours of typical runtime, 10 or more hours at reduced brightness.

• SafePanel has front-panel power switch for quick control.

Panel-Mount Design for standard 2 1/4" or 3⅛" instrument hole. 2 ¼” usage may require an extra notch cutout.

SafePanel supports global operations:

• Rest Of World fully supported, with user-selectable 29.92 inHg vs 1013.5 hPa standard settings.

• User-selectable knots/mph for airspeed display.

• SafePanel “Mini Glass ALT / REL ALT / VSI” is priced at $299.95

• SafePanel “Mini Glass” ALT / REL ALT / VSI/ASI is priced at $499.95
